Description

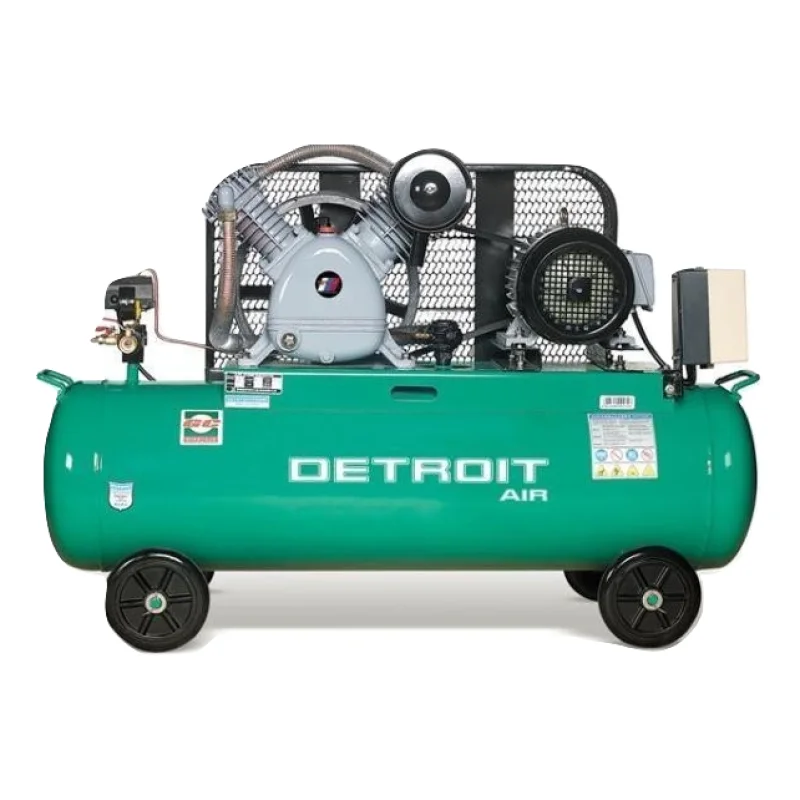

Two-stage, Industrial Piston Air Compressors – Proven heavy duty machines in all industries requiring pressures up to 12.5Bar.
- CE certified pressure vessels.
- Industrial grade electric motors.
- Cast-iron crank-case.
- Cast-iron cylinders & cylinder-heads
- Large flywheel for efficient cooling.
- Low-rpm long life air-pump.
- Low maintenance costs.
- Very affordable spares available off the shelf.
- All models include a direct-online starter and protection box.
Technical Data
- HP/KW -5.5/4
- RPM –847
- CFM –14.1
- RATED PRESSURE (BAR) – 12.5
- PISTON DIAMETER(mm) -90×1/65×1
- TANK SIZE (LITRES) –200
- VOLTAGE (50Hz) –380
- PACKING LxWxH (mm) –1420x540x930
- WEIGHT (KG) –189
