Description

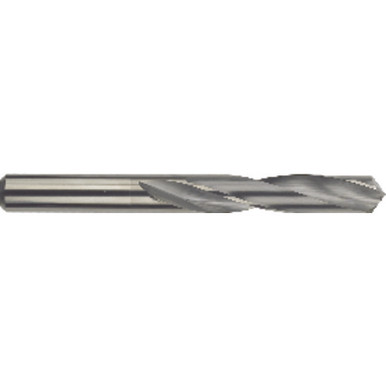

Solid Carbide Standard Length DrillRecommended for drilling cast iron, non-ferrous alloys, plastics, aluminum and other easily machined materials Solid Carbideoffer excellent hardness, wear resistance and heat resistance for higher cutting speeds and longer tool lifeTolerance +0/-.0005 Titanium Aluminum Nitride (TiALN) Coatingis an excellent all around coating that increases surface hardness, wear resistance, heat resisteance for higher cutting speeds and tool life.Country of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING:This product contains a chemical known to the State of California to cause cancer or Birth defects.For more information go towww.P65Warnings.ca.govDrill Bit Size / Cutting Diameter (DC) MTool Type DrillDecimal Equivalent 0.295″Point Shape SplitDrill Bit Size / Cutting Diameter (DC) – Letter /xa0Wire Gauge MMeasurement Type LetterLength Group StandardSeries/List 5374Coating TiAlNUsable Length (LU) u200e2-3/8″Connection Diameter Machine Side (DCONMS) 0.295″Length Chip Flute (LCF) u200e2-3/8″Coolant Supply Property (CSP) ExternalOverall Length (OAL) u200e3-3/4″Point Angle (SIG) 118 DegreesFlute Count (NOF) 2Flute Helix Angle (FHA) 25 DegreesCutting Direction (HAND) Right HandShank Type RoundBody Material CarbideCutting Edge Material Carbide
