Description
316 Stainless Steel Tri-Clamp to Male NPT Sanitary Adapter for Hygienic & High-Purity Systems

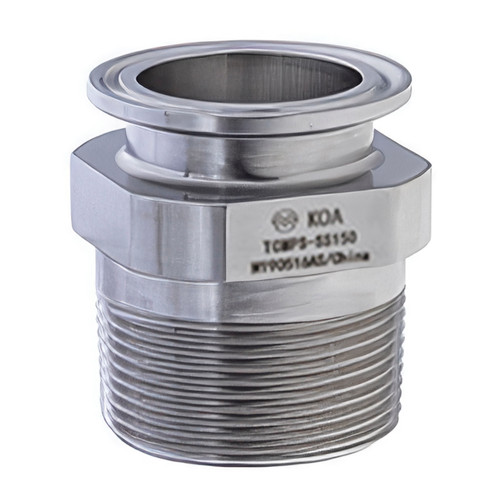

Kuriyama’s TCMPS-SS150 transitions a 1½ in. Tri-Clamp sanitary connection to a 1½ in. male NPT threaded pipe end so sanitary hose or tubing assemblies can integrate directly with standard threaded equipment like pumps, tanks, and process valves. Made from 316 stainless steel with a smooth 32 Ra food contact surface finish, this adapter is ideal for food and beverage processing, pharmaceutical transfer, chemical handling, and liquid cooling infrastructure where surface cleanliness, corrosion resistance, and fluid purity are critical. 316 SS resists pitting and corrosion from glycol-based coolants and deionized water commonly used in direct-to-chip and immersion cooling loops, and the 690 PSI pressure rating at 70°F provides substantial margin against pump start-up pressure spikes.
This adapter is compatible with SPHDS, DPHDS, and DBS series tri-clamp clamps, and accepts standard tri-clamp gaskets. The clamp-end design supports quick disassembly for cleaning and inspection without threading or special tooling, which is a good fit for data center maintenance windows where minimizing downtime is essential.
Key specifications:
- Fitting end (tri-clamp) size: 1½ in.; NPT end size: 1½ in. male
- Body material: 316 stainless steel
- Surface finish: 32 Ra (food contact)
- Pressure rating: 690 PSI at 70°F
- Weight: 1.44 lbs.
- Compatible clamps: SPHDS, DPHDS, or DBS series
- Uses standard tri-clamp gaskets
