Description

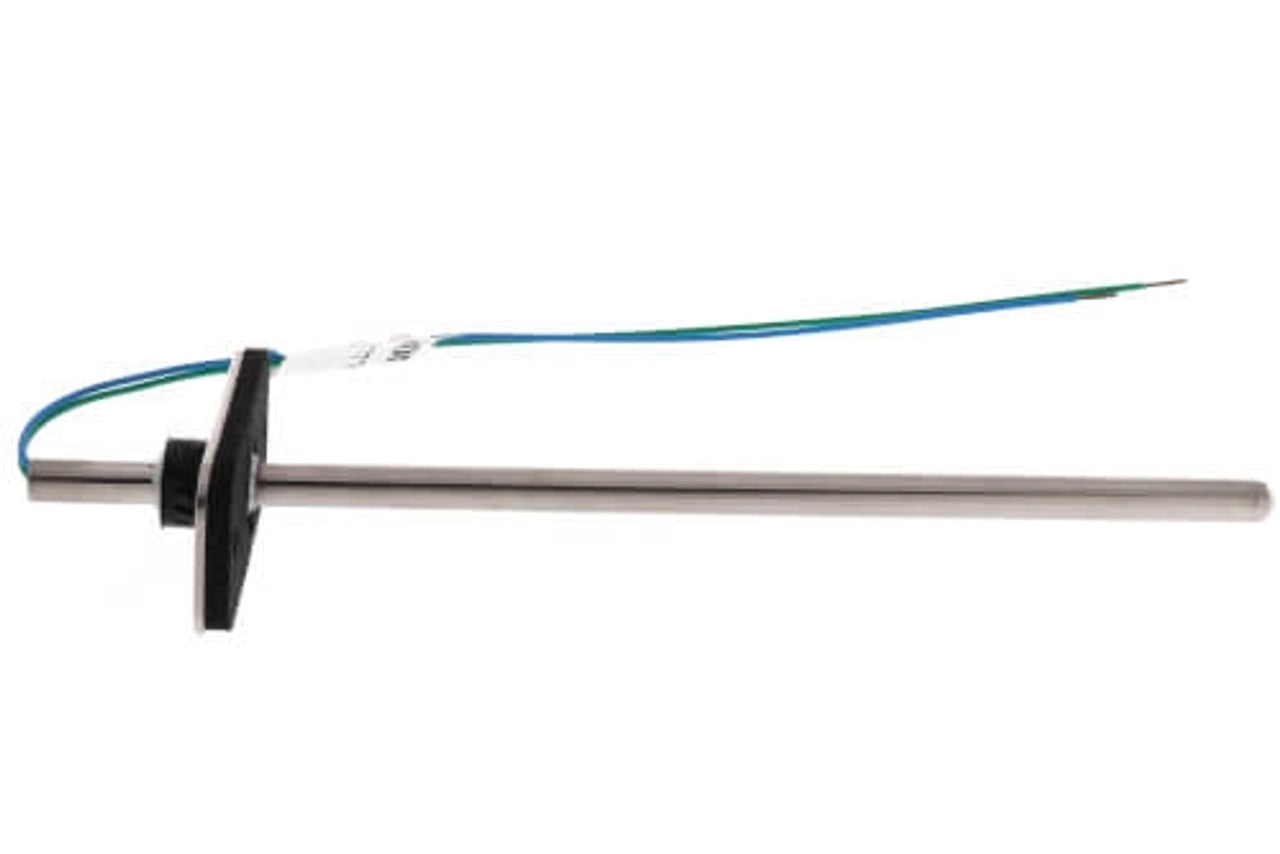

Temperature sensor, 20 K, duct-mount, 6″ probe.
C7770 NTC duct temperature sensors are direct-wired sensors that monitor the discharge temperature or return air in ducts. They are designed for the Excel 5000 family and other Honeywell controllers. The C7770A Sensors contain temperature-sensitive 20K ohm NTC non-linearized thermistors.
Features & Benefits:
- Primary and/or secondary sensors for use with electronic control systems
- Integral 20K ohm NTC, 10K ohm NTC Type II, or 10K ohm NTC Type III nonlinear sensors
- Operating range of 45 to 99°F (7 to 37°C)
- Mounts on a flat duct or plenum surface or, for a plenum-rated application, in a standard utility conduit box
- Probe length of 6 inches (152 mm)
- Rugged 1/4-inch diameter aluminum insertion probe
Certifications:
- CE
