Description

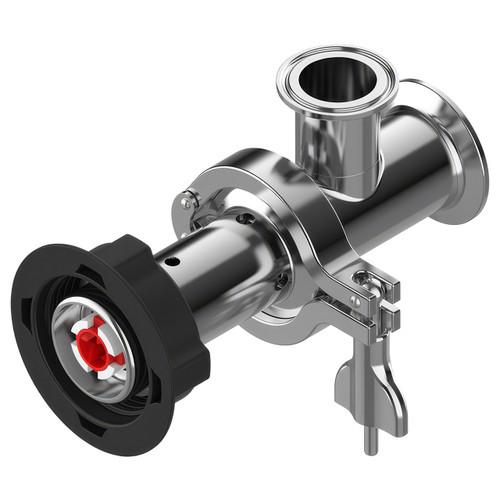

Flux Pumps MINIFLUX 63 GPM Sanitary Container Pump with F457 Electric Motor
The horizontally installed, compact MINIFLUX Sanitary IBC container pump was designed for emptying IBCs and other containers with a bottom outlet. It is intended as an alternative to vertical drum pumps for cases where containers can only be accessed from above with great difficulty if at all. It is also ideal if the medium’s or liquid’s natural outlet via the outlet tap does not provide sufficient pumping pressure for filling at speed or transferring to a container at a higher level, for example. The MINIFLUX is driven by a commutator motor, compressed air motor or brushless motor.
The MINIFLUX Sanitary is also designed for use in the hygiene sector. It is FDA-compliant as well as FOOD-compliant according to EC 1935/2004 and can be dismantled in a matter of seconds without any tools.
Included is the F457 electric motor for 120V, 60Hz, 1ph operation.
Please call a JME Sales Specialist at 800-333-3331 if a different motor than the F457 is required.
Other FLUX motors can be supplied (sold separately): (Electric) FEM 4070, F 457 EL, F 458/ F 458 EL, F 460 Ex/ F 460 Ex EL and F 458-1/ F 460-1 Ex & (Electric – Brushless) FBM 4000 Ex & (Electric 3 Phase Gear) F 414 & (Air Operated) F 416 Ex/F416-1 Ex/ F 416-2 Ex.
Included is also a support cable. Used to support the pump and motor from the IBC / tote cage.
