Description

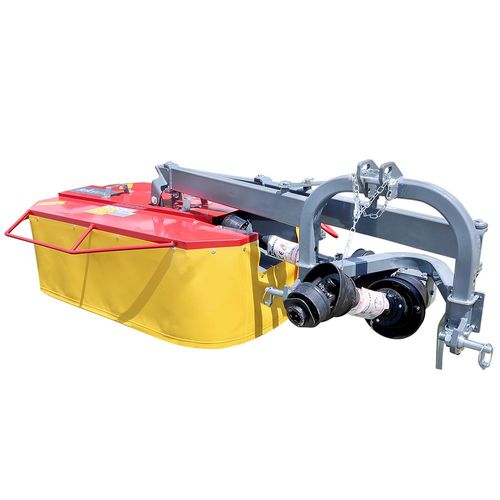

Drum Mower 45″ Bellonmit
This side drum mower comes equipped with eight swivel cutting blades that are attached to two drums directly driven by a gearbox. There are no belts to come off or replace. The inertia created by the drums helps you cut through the heaviest of hay at speeds from 5 to 6 MPH. The rear-mounted mower can be manually folded inwards for proper weight distribution and road width when transporting.
Specifications
- See the Video at the bottom of this page
- Bellonmint brand (Made in Italy)
- Works on Sub-Compact Tractors from 18 to 30hp
- Model number: TFL1150
- TFL 45″ Side Drum Mower with PTO
- Compact design for easy transport
- Manual folding design with pin locking bracket
- Simple two drum design
- Does NOT have breakaway protection
- PTO: 540 RPM
- Minimum tractor weight 1400 lbs.
- Tractor Hitch – Category 1, 3-Point
- Light and easy to handle
- Color: Red
- Horsepower requirement: 18 to 30
- Swivel Cutting Blades: 8
- Cutting width: 45-1/4″
- To achieve full cutting width, hitch and tractor wheel adjustments could be needed.
- Weight: 485 lbs.
- Comes with both PTO shafts
- For Replacement Blade, use 124447
- For Replacement PTO Shaft from Gearbox to Mower Drum, use 124466
- For Replacement PTO Shaft from Tractor to Mower Gearbox, use 124467
- For Replacement Shear Bolt for PTO Shaft at the Mower Drum end, use 46980 – M6 P1.0 45 8.8 Bolt and for the nut use 47059 – M6 Locknut
