Description

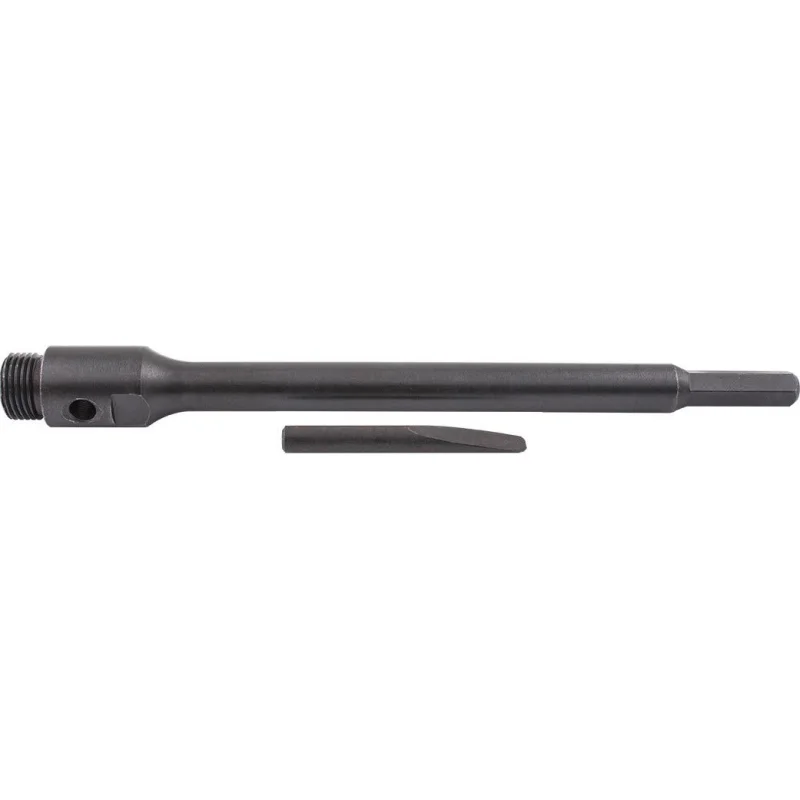

Adaptor – Hex shank
Adaptor length: 200mm
Thread: M16
Connection type: Hex
Application:
This is a Hex adaptor to connect the Dry Cut Diamond Core Drill to your portable drill.
Make sure the threads are the same as the Dry Cut Diamond Core Drill – M22 or M16.
Take note that there are 2 connection types:
- Hex
- SDS Plus
List of different adaptors:
1. Hex shank adaptors for the Dry Cut Diamond Core Drill range:
- Hex shank 70mm, M16 thread -TC18HEX1
- Hex shank 200mm, M16 thread – TC18HEX2
- Hex shank 300mm, M16 thread – TC18HEX3
- Drift key for removing the pilot drill – TC18KEY
- Pilot drill bit (not included with adaptors)-TC18PILOT
2. SDS Plus adaptors for the Dry Cut Diamond Core Drill range:
- SDS Plus 70mm, M16 thread -TC18SDS1
- SDS Plus 200mm, M16 thread – TC18SDS2
- SDS Plus 300mm, M16 thread – TC18SDS3
- SDS Plus 70mm, M22 thread – TC18SDS4
- SDS Plus 200mm, M22 thread – TC18SDS5
- SDS Plus 300mm, M22 thread – TC18SDS6
- Drift key for removing the pilot drill – TC18KEY
- Pilot drill bit (not included with adaptors)-TC18PILOT
NOTE:
The pilot drill bit is not included with the adaptors and it is available separately -TC18PILOT
INFORMATION:
Use the drift key TC18KEY to remove or replace the pilot drill bit from the adaptors.
