Description

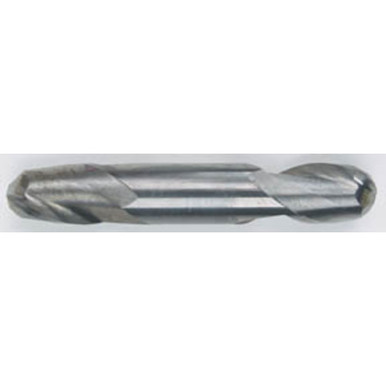

2-Flute Sub Length Ball Nose Double End Mills ó Solid Carbide Ball Noseend mills are designed for milling die cavities, fillets, round bottom holes and radius bottom slots 2-fluteend mills provide increased chip capacity Center Cuttingend allows for pluge cutting like a drill into solid materials Solid Carbideoffers higher cutting speeds, high rigidity, excellent hardness, wear resistance and long tool lifeCountry of OriginUSAWarning-Proposition 65- For Californian Users onlyWARNING:This product contains a chemical known to the State of California to cause cancer or Birth defects.For more information go towww.P65Warnings.ca.govCutting Diameter (DC) 7/32″Tool Type Double-EndConnection Diameter Machine Side (DCONMS) 1/4″Length Group StubDepth of Cut Maximum (APMX) 1/2″End Shape BallOverall Length (OAL) u200e2-1/2″Coolant Supply Property (CSP) ExternalCutting Edge Material CarbideStyle FinishingCoating UncoatedDecimal Equivalent 0.21875″Flute Count (NOF) 2Measurement Type InchFlute Helix Angle (FHA) 30 DegreesSeries/List 5948Shank Type PlainCenter Cutting Yes
