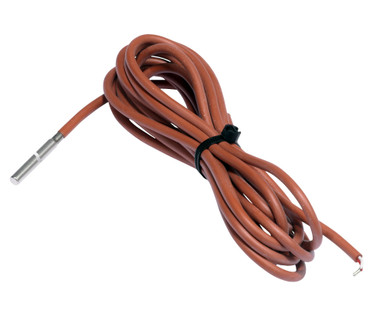

084Z6037 Danfoss Temperature sensor, MBT 153

Description

Product details

Gross weight	0.18 kg
Net weight	0.17 kg

EAN	5702423150229

Gross weight	0.18 kg
Net weight	0.17 kg
EAN	5702423150229



Cable length [in]	216.54 in
Cable length [m]	5.5 m
Cable tempr. range [°C] [Max]	200 °C
Cable tempr. range [°C] [Min]	-60 °C
Cable tempr. range [°F] [Max]	392 °F
Cable tempr. range [°F] [Min]	-76 °F
Cable type	Silicone
Electrical connection	Cable
Electrical connection size	2 wire
Enclosure rating IP	IP68
Insertion type	Variable
Output signal	Ohm
Packing format	Multi pack
Product group	Sensors
Product name	Temperature sensor
Protection tube diameter [in]	0.24 in

Protection tube diameter [mm]	6 mm
Protection tube material	AISI 305
Quantity per packing format	10 pc
Sensor elem. resistance [Ohm]	100 Ohm
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Temperature range [°C] [Max]	200 °C
Temperature range [°C] [Min]	-50 °C
Temperature range [°F] [Max]	392 °F
Temperature range [°F] [Min]	-58 °F
Type	MBT 153
Type designation	MBT 153-2000-0550
Wires [pcs]	2 pc

Cable length [in]	216.54 in
Cable length [m]	5.5 m
Cable tempr. range [°C] [Max]	200 °C
Cable tempr. range [°C] [Min]	-60 °C
Cable tempr. range [°F] [Max]	392 °F
Cable tempr. range [°F] [Min]	-76 °F
Cable type	Silicone
Electrical connection	Cable
Electrical connection size	2 wire
Enclosure rating IP	IP68
Insertion type	Variable
Output signal	Ohm
Packing format	Multi pack
Product group	Sensors
Product name	Temperature sensor
Protection tube diameter [in]	0.24 in
Protection tube diameter [mm]	6 mm
Protection tube material	AISI 305
Quantity per packing format	10 pc
Sensor elem. resistance [Ohm]	100 Ohm
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Temperature range [°C] [Max]	200 °C
Temperature range [°C] [Min]	-50 °C
Temperature range [°F] [Max]	392 °F
Temperature range [°F] [Min]	-58 °F
Type	MBT 153
Type designation	MBT 153-2000-0550
Wires [pcs]	2 pc

Temperature range [°C] [Min]: -50, Temperature range [°C] [Max]: 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 305, Electrical connection: Cable, Electrical connection size: 2 wire
