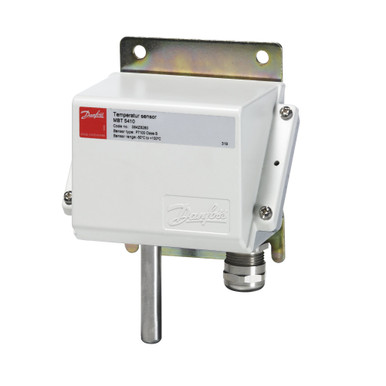

084Z5064 Danfoss Temperature sensor, MBT 5410

Description

Product details

Gross weight	0.68 kg
Net weight	0.59 kg

EAN	5702423141647

Gross weight	0.68 kg
Net weight	0.59 kg
EAN	5702423141647



Ambient temperature max. [°C]	85 °C
Ambient temperature max. [°F]	185 °F
Electrical connection	Box (metal/plastic)
Electrical connection size	2 terminals
Enclosure rating IP	IP67
Insertion length [in]	2.36 in
Insertion length [mm]	60 mm
Insertion type	Fixed
Number of terminals [pcs]	3 pc
Output signal [mA] [Max]	20 mA
Output signal [mA] [Min]	4 mA
Packing format	Multi pack
Product group	Sensors
Product name	Temperature sensor
Protection tube diameter [in]	0.4 in
Protection tube diameter [mm]	10 mm
Protection tube material	AISI 316 Ti
Quantity per packing format	8 pc
Sensor elem. resistance [Ohm]	100 Ohm

Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Sensor Insert	Exchangeable
Supply voltage [V] DC [Max]	35 V
Supply voltage [V] DC [Min]	8 V
Temperature range [°C] [Max]	100 °C
Temperature range [°C] [Min]	-50 °C
Temperature range [°F] [Max]	212 °F
Temperature range [°F] [Min]	-58 °F
Transmitter setting range [°C] [Max]	50 °C
Transmitter setting range [°C] [Min]	-10 °C
Transmitter setting range [°F] [Max]	122 °F
Transmitter setting range [°F] [Min]	14 °F
Transmitter type	Standard
Type	MBT 5410
Type designation	MBT 5410-000-060-000-G205
Wires [pcs]	2 pc

Ambient temperature max. [°C]	85 °C
Ambient temperature max. [°F]	185 °F
Electrical connection	Box (metal/plastic)
Electrical connection size	2 terminals
Enclosure rating IP	IP67
Insertion length [in]	2.36 in
Insertion length [mm]	60 mm
Insertion type	Fixed
Number of terminals [pcs]	3 pc
Output signal [mA] [Max]	20 mA
Output signal [mA] [Min]	4 mA
Packing format	Multi pack
Product group	Sensors
Product name	Temperature sensor
Protection tube diameter [in]	0.4 in
Protection tube diameter [mm]	10 mm
Protection tube material	AISI 316 Ti
Quantity per packing format	8 pc
Sensor elem. resistance [Ohm]	100 Ohm
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Sensor Insert	Exchangeable
Supply voltage [V] DC [Max]	35 V
Supply voltage [V] DC [Min]	8 V
Temperature range [°C] [Max]	100 °C
Temperature range [°C] [Min]	-50 °C
Temperature range [°F] [Max]	212 °F
Temperature range [°F] [Min]	-58 °F
Transmitter setting range [°C] [Max]	50 °C
Transmitter setting range [°C] [Min]	-10 °C
Transmitter setting range [°F] [Max]	122 °F
Transmitter setting range [°F] [Min]	14 °F
Transmitter type	Standard
Type	MBT 5410
Type designation	MBT 5410-000-060-000-G205
Wires [pcs]	2 pc

Temperature range [°C] [Min]: -50, Temperature range [°C] [Max]: 100, Insertion length [mm]: 60, Output signal [mA] [Min]: 4, Output signal [mA] [Max]: 20, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Protection tube material: AISI 316 Ti, Electrical connection: Box (metal/plastic)
