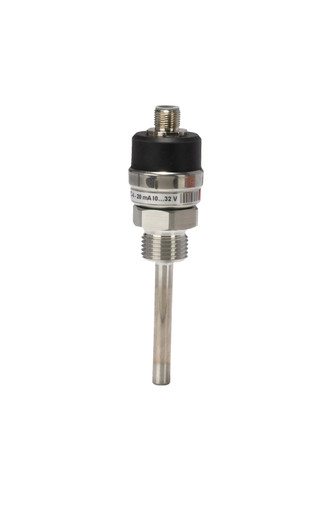

084Z4104 Danfoss Temperature sensor, MBT 3560

084Z4104 Danfoss Temperature sensor, MBT 3560

Original price was: $263.43.Current price is: $65.86.

SKU: 084Z4104 Category: Tag:

Description

Product details

Gross weight 0.16 kg
Net weight 0.14 kg
EAN 5702423267019
Gross weight 0.16 kg
Net weight 0.14 kg
EAN 5702423267019



Ambient temperature max. [°C] 85 °C
Ambient temperature max. [°F] 185 °F
Connection material Stainless steel
Connection standard ISO 228
Connection type UNF
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 4 pin
Electrical connection standard EN 60947-5-2
Enclosure rating IP IP67
Insertion length [in] 2.68 in
Insertion length [mm] 68 mm
Insertion type Fixed
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Packing format Multi pack
Process connection material Stainless steel
Process Connections UNF3/4-16 , ASME B1.1
Product Group PUMP UNIT
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.31 in
Protection tube diameter [mm] 8 mm
Protection tube material AISI 316 Ti
Quantity per packing format 13 pc
Sensor elem. resistance [Ohm] 1000 Ohm
Sensor element tolerance <± 1% FS
Sensor element type Pt
Sensor Insert Fixed
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 10 V
Temperature range [°C] [Max] 120 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 248 °F
Temperature range [°F] [Min] -58 °F
Transmitter setting range [°C] [Max] 150 °C
Transmitter setting range [°C] [Min] -40 °C
Transmitter setting range [°F] [Max] 302 °F
Transmitter setting range [°F] [Min] -40 °F
Transmitter type Integrated
Type MBT 3560
Type designation MBT 3560-0000-0068-6A-815
Ambient temperature max. [°C] 85 °C
Ambient temperature max. [°F] 185 °F
Connection material Stainless steel
Connection standard ISO 228
Connection type UNF
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 4 pin
Electrical connection standard EN 60947-5-2
Enclosure rating IP IP67
Insertion length [in] 2.68 in
Insertion length [mm] 68 mm
Insertion type Fixed
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Packing format Multi pack
Process connection material Stainless steel
Process Connections UNF3/4-16 , ASME B1.1
Product Group PUMP UNIT
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.31 in
Protection tube diameter [mm] 8 mm
Protection tube material AISI 316 Ti
Quantity per packing format 13 pc
Sensor elem. resistance [Ohm] 1000 Ohm
Sensor element tolerance <± 1% FS
Sensor element type Pt
Sensor Insert Fixed
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 10 V
Temperature range [°C] [Max] 120 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 248 °F
Temperature range [°F] [Min] -58 °F
Transmitter setting range [°C] [Max] 150 °C
Transmitter setting range [°C] [Min] -40 °C
Transmitter setting range [°F] [Max] 302 °F
Transmitter setting range [°F] [Min] -40 °F
Transmitter type Integrated
Type MBT 3560
Type designation MBT 3560-0000-0068-6A-815

Process Connections: UNF3/4-16 , ASME B1.1, Temperature range [°C] [Min]: -50, Temperature range [°C] [Max]: 120, Insertion length [mm]: 68, Output signal [mA] [Min]: 4, Output signal [mA] [Max]: 20, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 1000, Protection tube material: AISI 316 Ti, Electrical connection: M12 x 1

Product details

Gross weight 0.16 kg
Net weight 0.14 kg
EAN 5702423267019
Gross weight 0.16 kg
Net weight 0.14 kg
EAN 5702423267019



Ambient temperature max. [°C] 85 °C
Ambient temperature max. [°F] 185 °F
Connection material Stainless steel
Connection standard ISO 228
Connection type UNF
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 4 pin
Electrical connection standard EN 60947-5-2
Enclosure rating IP IP67
Insertion length [in] 2.68 in
Insertion length [mm] 68 mm
Insertion type Fixed
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Packing format Multi pack
Process connection material Stainless steel
Process Connections UNF3/4-16 , ASME B1.1
Product Group PUMP UNIT
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.31 in
Protection tube diameter [mm] 8 mm
Protection tube material AISI 316 Ti
Quantity per packing format 13 pc
Sensor elem. resistance [Ohm] 1000 Ohm
Sensor element tolerance <± 1% FS
Sensor element type Pt
Sensor Insert Fixed
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 10 V
Temperature range [°C] [Max] 120 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 248 °F
Temperature range [°F] [Min] -58 °F
Transmitter setting range [°C] [Max] 150 °C
Transmitter setting range [°C] [Min] -40 °C
Transmitter setting range [°F] [Max] 302 °F
Transmitter setting range [°F] [Min] -40 °F
Transmitter type Integrated
Type MBT 3560
Type designation MBT 3560-0000-0068-6A-815
Ambient temperature max. [°C] 85 °C
Ambient temperature max. [°F] 185 °F
Connection material Stainless steel
Connection standard ISO 228
Connection type UNF
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 4 pin
Electrical connection standard EN 60947-5-2
Enclosure rating IP IP67
Insertion length [in] 2.68 in
Insertion length [mm] 68 mm
Insertion type Fixed
Output signal [mA] [Max] 20 mA
Output signal [mA] [Min] 4 mA
Packing format Multi pack
Process connection material Stainless steel
Process Connections UNF3/4-16 , ASME B1.1
Product Group PUMP UNIT
Product group Sensors
Product name Temperature sensor
Protection tube diameter [in] 0.31 in
Protection tube diameter [mm] 8 mm
Protection tube material AISI 316 Ti
Quantity per packing format 13 pc
Sensor elem. resistance [Ohm] 1000 Ohm
Sensor element tolerance <± 1% FS
Sensor element type Pt
Sensor Insert Fixed
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 10 V
Temperature range [°C] [Max] 120 °C
Temperature range [°C] [Min] -50 °C
Temperature range [°F] [Max] 248 °F
Temperature range [°F] [Min] -58 °F
Transmitter setting range [°C] [Max] 150 °C
Transmitter setting range [°C] [Min] -40 °C
Transmitter setting range [°F] [Max] 302 °F
Transmitter setting range [°F] [Min] -40 °F
Transmitter type Integrated
Type MBT 3560
Type designation MBT 3560-0000-0068-6A-815
