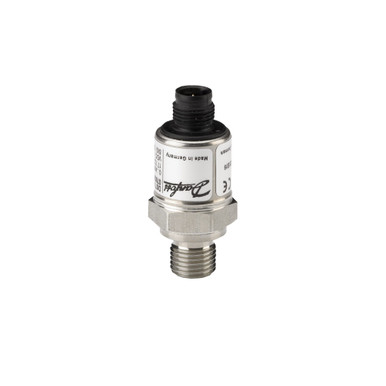

078G6010 Danfoss Pressure transmitter, DST P92C

078G6010 Danfoss Pressure transmitter, DST P92C

Original price was: $479.91.Current price is: $95.98.

SKU: 078G6010 Category: Tag:

Description

Product details

Gross weight 0.05 kg
Net weight 0.05 kg
EAN 5702428047289
Gross weight 0.05 kg
Net weight 0.05 kg
EAN 5702428047289



+ supply Pin 2
– common Pin 3
Accuracy TEB [-25 – 80°C] ±FS 1.5 %
Accuracy TEB [-40 – 80°C] ±FS 2.5 %
Accuracy TEB [0 – 80°C] ±FS 1 %
Bitrate kBit/sec 125 kb/s
Burst pressure [bar] 2500 bar
Burst pressure [psig] 36259 psig
CAN_H (CAN +) Pin 4
CAN_L (CAN -) Pin 5
Electrical conn. comments PBT
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 5 pin
Enclosure rating IP IP67
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -104 °F
Node ID 1
Output signal CAN-open
Overload pressure max. [bar] 500 bar
Overload pressure max. [psig] 7251 psig
Packing format Multi pack
PE, Housing Pin 1
Pressure connection HEX [mm] 22 mm
Pressure connection size 7/16-20
Pressure connection standard SAE 4
Pressure connection type UNF
Pressure Male/Female Male
Pressure range [bar] [Max] 250 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 3625.94 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 45 pc
Response time max. [ms] 1 ms
Specification key DST P92C-5034-1-Z-EA-BD08
Start up time [ms] 40 ms
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 9 V
Type DST P92C
+ supply Pin 2
– common Pin 3
Accuracy TEB [-25 – 80°C] ±FS 1.5 %
Accuracy TEB [-40 – 80°C] ±FS 2.5 %
Accuracy TEB [0 – 80°C] ±FS 1 %
Bitrate kBit/sec 125 kb/s
Burst pressure [bar] 2500 bar
Burst pressure [psig] 36259 psig
CAN_H (CAN +) Pin 4
CAN_L (CAN -) Pin 5
Electrical conn. comments PBT
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 5 pin
Enclosure rating IP IP67
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -104 °F
Node ID 1
Output signal CAN-open
Overload pressure max. [bar] 500 bar
Overload pressure max. [psig] 7251 psig
Packing format Multi pack
PE, Housing Pin 1
Pressure connection HEX [mm] 22 mm
Pressure connection size 7/16-20
Pressure connection standard SAE 4
Pressure connection type UNF
Pressure Male/Female Male
Pressure range [bar] [Max] 250 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 3625.94 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 45 pc
Response time max. [ms] 1 ms
Specification key DST P92C-5034-1-Z-EA-BD08
Start up time [ms] 40 ms
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 9 V
Type DST P92C

Product name: Pressure transmitter, Type: DST P92C, Output signal: CAN-open, Electrical connection: M12 x 1

Product details

Gross weight 0.05 kg
Net weight 0.05 kg
EAN 5702428047289
Gross weight 0.05 kg
Net weight 0.05 kg
EAN 5702428047289



+ supply Pin 2
– common Pin 3
Accuracy TEB [-25 – 80°C] ±FS 1.5 %
Accuracy TEB [-40 – 80°C] ±FS 2.5 %
Accuracy TEB [0 – 80°C] ±FS 1 %
Bitrate kBit/sec 125 kb/s
Burst pressure [bar] 2500 bar
Burst pressure [psig] 36259 psig
CAN_H (CAN +) Pin 4
CAN_L (CAN -) Pin 5
Electrical conn. comments PBT
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 5 pin
Enclosure rating IP IP67
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -104 °F
Node ID 1
Output signal CAN-open
Overload pressure max. [bar] 500 bar
Overload pressure max. [psig] 7251 psig
Packing format Multi pack
PE, Housing Pin 1
Pressure connection HEX [mm] 22 mm
Pressure connection size 7/16-20
Pressure connection standard SAE 4
Pressure connection type UNF
Pressure Male/Female Male
Pressure range [bar] [Max] 250 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 3625.94 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 45 pc
Response time max. [ms] 1 ms
Specification key DST P92C-5034-1-Z-EA-BD08
Start up time [ms] 40 ms
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 9 V
Type DST P92C
+ supply Pin 2
– common Pin 3
Accuracy TEB [-25 – 80°C] ±FS 1.5 %
Accuracy TEB [-40 – 80°C] ±FS 2.5 %
Accuracy TEB [0 – 80°C] ±FS 1 %
Bitrate kBit/sec 125 kb/s
Burst pressure [bar] 2500 bar
Burst pressure [psig] 36259 psig
CAN_H (CAN +) Pin 4
CAN_L (CAN -) Pin 5
Electrical conn. comments PBT
Electrical conn. Male/Female Male
Electrical connection M12 x 1
Electrical connection size 5 pin
Enclosure rating IP IP67
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -40 °C
Medium temperature range [°F] [Max] 185 °F
Medium temperature range [°F] [Min] -104 °F
Node ID 1
Output signal CAN-open
Overload pressure max. [bar] 500 bar
Overload pressure max. [psig] 7251 psig
Packing format Multi pack
PE, Housing Pin 1
Pressure connection HEX [mm] 22 mm
Pressure connection size 7/16-20
Pressure connection standard SAE 4
Pressure connection type UNF
Pressure Male/Female Male
Pressure range [bar] [Max] 250 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 3625.94 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 45 pc
Response time max. [ms] 1 ms
Specification key DST P92C-5034-1-Z-EA-BD08
Start up time [ms] 40 ms
Supply voltage [V] DC [Max] 32 V
Supply voltage [V] DC [Min] 9 V
Type DST P92C
