Description
Product details
| Gross weight |
0.06 kg |
| Net weight |
0.05 kg |
| Gross weight |
0.06 kg |
| Net weight |
0.05 kg |
| EAN |
5702428047043 |
| + supply |
Pin 2 |
| – common |
Pin 3 |
| Accuracy TEB [-25 – 80°C] ±FS |
1.5 % |
| Accuracy TEB [-40 – 80°C] ±FS |
2.5 % |
| Accuracy TEB [0 – 80°C] ±FS |
1 % |
| Bitrate kBit/sec |
125 kb/s |
| Burst pressure [bar] |
400 bar |
| Burst pressure [psig] |
5800 psig |
| CAN_H (CAN +) |
Pin 4 |
| CAN_L (CAN -) |
Pin 1 |
| Electrical conn. Male/Female |
Male |
| Electrical connection |
Deutsch DT04 |
| Electrical connection size |
4 pin |
| Enclosure rating IP |
IP67 |
| Medium temperature range [°C] [Max] |
125 °C |
| Medium temperature range [°C] [Min] |
-40 °C |
| Medium temperature range [°F] [Max] |
185 °F |
| Medium temperature range [°F] [Min] |
-104 °F |
| Node ID |
1 |
| Output signal |
CAN-open |
| Overload pressure max. [bar] |
80 bar |
| Overload pressure max. [psig] |
1160 psig |
| Packing format |
Multi pack |
| PE, Housing |
Not used |
| Pressure connection HEX [mm] |
22 mm |
| Pressure connection size |
9/16-18 |
| Pressure connection standard |
SAE 6 |
| Pressure connection type |
UNF |
| Pressure Male/Female |
Male |
| Pressure range [bar] [Max] |
40 bar |
| Pressure range [bar] [Min] |
0 bar |
| Pressure range [psi] [Max] |
580.15 psi |
| Pressure range [psi] [Min] |
0 psi |
| Pressure unit reference |
Gauge (relative) |
| Product group |
Sensors |
| Product name |
Pressure transmitter |
| Pulse-snubber |
Yes |
| Quantity per packing format |
45 pc |
| Response time max. [ms] |
1 ms |
| Specification key |
DST P92C-5026-1-Z-EB-BD11 |
| Start up time [ms] |
40 ms |
| Supply voltage [V] DC [Max] |
32 V |
| Supply voltage [V] DC [Min] |
9 V |
| Type |
DST P92C |
| + supply |
Pin 2 |
| – common |
Pin 3 |
| Accuracy TEB [-25 – 80°C] ±FS |
1.5 % |
| Accuracy TEB [-40 – 80°C] ±FS |
2.5 % |
| Accuracy TEB [0 – 80°C] ±FS |
1 % |
| Bitrate kBit/sec |
125 kb/s |
| Burst pressure [bar] |
400 bar |
| Burst pressure [psig] |
5800 psig |
| CAN_H (CAN +) |
Pin 4 |
| CAN_L (CAN -) |
Pin 1 |
| Electrical conn. Male/Female |
Male |
| Electrical connection |
Deutsch DT04 |
| Electrical connection size |
4 pin |
| Enclosure rating IP |
IP67 |
| Medium temperature range [°C] [Max] |
125 °C |
| Medium temperature range [°C] [Min] |
-40 °C |
| Medium temperature range [°F] [Max] |
185 °F |
| Medium temperature range [°F] [Min] |
-104 °F |
| Node ID |
1 |
| Output signal |
CAN-open |
| Overload pressure max. [bar] |
80 bar |
| Overload pressure max. [psig] |
1160 psig |
| Packing format |
Multi pack |
| PE, Housing |
Not used |
| Pressure connection HEX [mm] |
22 mm |
| Pressure connection size |
9/16-18 |
| Pressure connection standard |
SAE 6 |
| Pressure connection type |
UNF |
| Pressure Male/Female |
Male |
| Pressure range [bar] [Max] |
40 bar |
| Pressure range [bar] [Min] |
0 bar |
| Pressure range [psi] [Max] |
580.15 psi |
| Pressure range [psi] [Min] |
0 psi |
| Pressure unit reference |
Gauge (relative) |
| Product group |
Sensors |
| Product name |
Pressure transmitter |
| Pulse-snubber |
Yes |
| Quantity per packing format |
45 pc |
| Response time max. [ms] |
1 ms |
| Specification key |
DST P92C-5026-1-Z-EB-BD11 |
| Start up time [ms] |
40 ms |
| Supply voltage [V] DC [Max] |
32 V |
| Supply voltage [V] DC [Min] |
9 V |
| Type |
DST P92C |

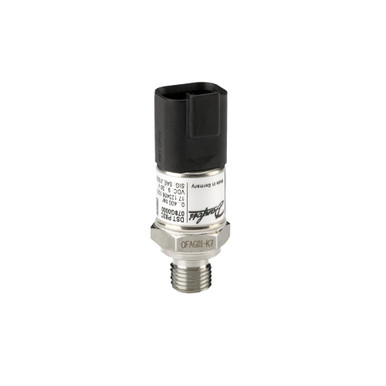

Product name: Pressure transmitter, Type: DST P92C, Output signal: CAN-open, Electrical connection: Deutsch DT04
