Description
Product details
| Gross weight |
0.09 kg |
| Net weight |
0.07 kg |
| Gross weight |
0.09 kg |
| Net weight |
0.07 kg |
| EAN |
5702423273249 |
| + supply |
Pin 1 |
| – common |
Pin 2 |
| Accuracy @ ref. temp. ±FS [%] |
1 % |
| Accuracy, typical +/- FS [%] |
1 % |
| Adj. zero point and span |
No |
| Ambient temperature range [°C] [Max] |
80 °C |
| Ambient temperature range [°C] [Min] |
-20 °C |
| Ambient temperature range [°F] [Max] |
176 °F |
| Ambient temperature range [°F] [Min] |
-4 °F |
| Approval |
C UR US |
| Approval comments |
UL-873 |
| Compensated temp. range [°C] [Max] |
80 °C |
| Compensated temp. range [°C] [Min] |
0 °C |
| Compensated temp. range [°F] [Max] |
176 °F |
| Compensated temp. range [°F] [Min] |
32 °F |
| Electrical conn. Male/Female |
Male and Female |
| Electrical connection |
Plug |
| Electrical connection size |
Pg 9 |
| Electrical connection standard |
EN 175301-803-A |
| Enclosure rating IP |
IP65 |
| Fault Monitoring Demand |
No |
| Flush diaphragm |
No |
| Intrinsically safe |
No |
| Medium temperature range [°C] [Max] |
80 °C |
| Medium temperature range [°C] [Min] |
0 °C |
| Medium temperature range [°F] [Max] |
176 °F |
| Medium temperature range [°F] [Min] |
32 °F |
| Non-linearity BFSL ±FS [%] |
0.5 % |
| Output signal [mA] [Max] |
20 mA |
| Output signal [mA] [Min] |
4 mA |
| Overload pressure max. [bar] |
75 bar |
| Overload pressure max. [psi] |
1088 psi |
| Packing format |
Multi pack |
| Pressure connection HEX [mm] |
24 mm |
| Pressure connection notes |
A |
| Pressure connection size |
1/4 |
| Pressure connection standard |
EN 837 |
| Pressure connection type |
G |
| Pressure Male/Female |
Male |
| Pressure range [bar] [Max] |
16 bar |
| Pressure range [bar] [Min] |
0 bar |
| Pressure range [psi] [Max] |
232.06 psi |
| Pressure range [psi] [Min] |
0 psi |
| Pressure unit reference |
Gauge (relative) |
| Product group |
Sensors |
| Product name |
Pressure transmitter |
| Pulse-snubber |
No |
| Quantity per packing format |
20 pc |
| Reference temperature [°C] |
20 °C |
| Reference temperature [°F] |
68 °F |
| Response time max. [ms] |
4 ms |
| Specification key |
MBS 1900-2211-A1AB04-0 |
| Supply voltage [V] DC [Max] |
28 V |
| Supply voltage [V] DC [Min] |
9 V |
| TEB inside CTR ±FS [%] |
3 % |
| Type |
MBS 1900 |
| + supply |
Pin 1 |
| – common |
Pin 2 |
| Accuracy @ ref. temp. ±FS [%] |
1 % |
| Accuracy, typical +/- FS [%] |
1 % |
| Adj. zero point and span |
No |
| Ambient temperature range [°C] [Max] |
80 °C |
| Ambient temperature range [°C] [Min] |
-20 °C |
| Ambient temperature range [°F] [Max] |
176 °F |
| Ambient temperature range [°F] [Min] |
-4 °F |
| Approval |
C UR US |
| Approval comments |
UL-873 |
| Compensated temp. range [°C] [Max] |
80 °C |
| Compensated temp. range [°C] [Min] |
0 °C |
| Compensated temp. range [°F] [Max] |
176 °F |
| Compensated temp. range [°F] [Min] |
32 °F |
| Electrical conn. Male/Female |
Male and Female |
| Electrical connection |
Plug |
| Electrical connection size |
Pg 9 |
| Electrical connection standard |
EN 175301-803-A |
| Enclosure rating IP |
IP65 |
| Fault Monitoring Demand |
No |
| Flush diaphragm |
No |
| Intrinsically safe |
No |
| Medium temperature range [°C] [Max] |
80 °C |
| Medium temperature range [°C] [Min] |
0 °C |
| Medium temperature range [°F] [Max] |
176 °F |
| Medium temperature range [°F] [Min] |
32 °F |
| Non-linearity BFSL ±FS [%] |
0.5 % |
| Output signal [mA] [Max] |
20 mA |
| Output signal [mA] [Min] |
4 mA |
| Overload pressure max. [bar] |
75 bar |
| Overload pressure max. [psi] |
1088 psi |
| Packing format |
Multi pack |
| Pressure connection HEX [mm] |
24 mm |
| Pressure connection notes |
A |
| Pressure connection size |
1/4 |
| Pressure connection standard |
EN 837 |
| Pressure connection type |
G |
| Pressure Male/Female |
Male |
| Pressure range [bar] [Max] |
16 bar |
| Pressure range [bar] [Min] |
0 bar |
| Pressure range [psi] [Max] |
232.06 psi |
| Pressure range [psi] [Min] |
0 psi |
| Pressure unit reference |
Gauge (relative) |
| Product group |
Sensors |
| Product name |
Pressure transmitter |
| Pulse-snubber |
No |
| Quantity per packing format |
20 pc |
| Reference temperature [°C] |
20 °C |
| Reference temperature [°F] |
68 °F |
| Response time max. [ms] |
4 ms |
| Specification key |
MBS 1900-2211-A1AB04-0 |
| Supply voltage [V] DC [Max] |
28 V |
| Supply voltage [V] DC [Min] |
9 V |
| TEB inside CTR ±FS [%] |
3 % |
| Type |
MBS 1900 |

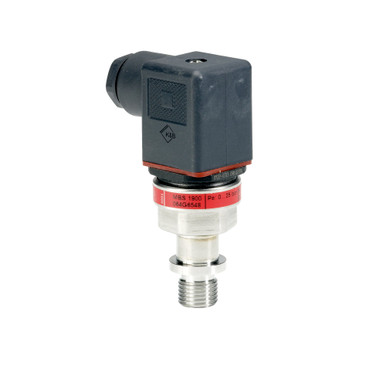

Product name: Pressure transmitter, Type: MBS 1900, Pressure range [psi]: 0.00 – 232.06, Pressure range [bar]: 0.00 – 16.00, Pressure connection size: 1/4, Pressure connection type: G, Output signal [mA]: 4 – 20, Electrical connection size: Pg 9, Electrical connection: Plug
