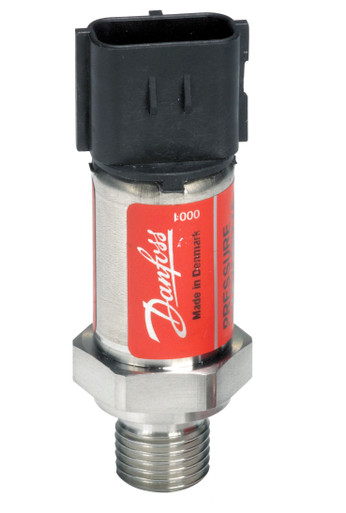

064G1065 Danfoss Pressure transmitter, MBS 8250

064G1065 Danfoss Pressure transmitter, MBS 8250

Original price was: $279.08.Current price is: $69.77.

SKU: 064G1065 Category: Tag:

Description

Product details

Gross weight 0.06 kg
Net weight 0.06 kg
EAN 5702423268276
Gross weight 0.06 kg
Net weight 0.06 kg
EAN 5702423268276



+ output Pin 3
+ supply Pin 1
– common Pin 2
Accuracy @ ref. temp. ±FS [%] 0.5 %
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 105 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 221 °F
Ambient temperature range [°F] [Min] -40 °F
Approval C UR US
Approval comments UL-508
Compensated temp. range [°C] [Max] 100 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 212 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. comments Integrated
Electrical conn. Male/Female Male
Electrical connection AMP Econoseal, J-series
Electrical connection size 3 pin
Enclosure rating IP IP67
Fault Monitoring Demand No
Flush diaphragm No
Identical product 064G4001
Intrinsically safe No
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -20 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -4 °F
Non-linearity BFSL ±FS [%] 0.2 %
Overload pressure max. [bar] 1400 bar
Overload pressure max. [psi] 20305 psi
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection size 1/4
Pressure connection standard DIN 3852-E
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 250 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 3625.94 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 24 pc
Ratiometric of Vsupply [%] [Max] 90 %
Ratiometric of Vsupply [%] [Min] 10 %
Reference temperature [°C] 25 °C
Reference temperature [°F] 77 °F
Response time max. [ms] 1 ms
Specification key MBS 8250-3416-A2GB04-1
Supply voltage [V] DC [Max] 5.5 V
Supply voltage [V] DC [Min] 4.5 V
TEB inside CTR ±FS [%] 1 %
Thermal shift HTR ±FS/10 K [%] 0.2 %
Thermal shift LTR ±FS/10 K [%] 0.2 %
Type MBS 8250
+ output Pin 3
+ supply Pin 1
– common Pin 2
Accuracy @ ref. temp. ±FS [%] 0.5 %
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 105 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 221 °F
Ambient temperature range [°F] [Min] -40 °F
Approval C UR US
Approval comments UL-508
Compensated temp. range [°C] [Max] 100 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 212 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. comments Integrated
Electrical conn. Male/Female Male
Electrical connection AMP Econoseal, J-series
Electrical connection size 3 pin
Enclosure rating IP IP67
Fault Monitoring Demand No
Flush diaphragm No
Identical product 064G4001
Intrinsically safe No
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -20 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -4 °F
Non-linearity BFSL ±FS [%] 0.2 %
Overload pressure max. [bar] 1400 bar
Overload pressure max. [psi] 20305 psi
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection size 1/4
Pressure connection standard DIN 3852-E
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 250 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 3625.94 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 24 pc
Ratiometric of Vsupply [%] [Max] 90 %
Ratiometric of Vsupply [%] [Min] 10 %
Reference temperature [°C] 25 °C
Reference temperature [°F] 77 °F
Response time max. [ms] 1 ms
Specification key MBS 8250-3416-A2GB04-1
Supply voltage [V] DC [Max] 5.5 V
Supply voltage [V] DC [Min] 4.5 V
TEB inside CTR ±FS [%] 1 %
Thermal shift HTR ±FS/10 K [%] 0.2 %
Thermal shift LTR ±FS/10 K [%] 0.2 %
Type MBS 8250

Product name: Pressure transmitter, Type: MBS 8250, Pressure range [psi]: 0.00 – 3625.94, Pressure range [bar]: 0.00 – 250.00, Pressure connection size: 1/4, Pressure connection type: G, Electrical connection size: 3 pin, Electrical connection: AMP Econoseal, J-series

Product details

Gross weight 0.06 kg
Net weight 0.06 kg
EAN 5702423268276
Gross weight 0.06 kg
Net weight 0.06 kg
EAN 5702423268276



+ output Pin 3
+ supply Pin 1
– common Pin 2
Accuracy @ ref. temp. ±FS [%] 0.5 %
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 105 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 221 °F
Ambient temperature range [°F] [Min] -40 °F
Approval C UR US
Approval comments UL-508
Compensated temp. range [°C] [Max] 100 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 212 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. comments Integrated
Electrical conn. Male/Female Male
Electrical connection AMP Econoseal, J-series
Electrical connection size 3 pin
Enclosure rating IP IP67
Fault Monitoring Demand No
Flush diaphragm No
Identical product 064G4001
Intrinsically safe No
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -20 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -4 °F
Non-linearity BFSL ±FS [%] 0.2 %
Overload pressure max. [bar] 1400 bar
Overload pressure max. [psi] 20305 psi
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection size 1/4
Pressure connection standard DIN 3852-E
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 250 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 3625.94 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 24 pc
Ratiometric of Vsupply [%] [Max] 90 %
Ratiometric of Vsupply [%] [Min] 10 %
Reference temperature [°C] 25 °C
Reference temperature [°F] 77 °F
Response time max. [ms] 1 ms
Specification key MBS 8250-3416-A2GB04-1
Supply voltage [V] DC [Max] 5.5 V
Supply voltage [V] DC [Min] 4.5 V
TEB inside CTR ±FS [%] 1 %
Thermal shift HTR ±FS/10 K [%] 0.2 %
Thermal shift LTR ±FS/10 K [%] 0.2 %
Type MBS 8250
+ output Pin 3
+ supply Pin 1
– common Pin 2
Accuracy @ ref. temp. ±FS [%] 0.5 %
Accuracy, max. +/- FS [%] 1 %
Accuracy, typical +/- FS [%] 0.5 %
Adj. zero point and span No
Ambient temperature range [°C] [Max] 105 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 221 °F
Ambient temperature range [°F] [Min] -40 °F
Approval C UR US
Approval comments UL-508
Compensated temp. range [°C] [Max] 100 °C
Compensated temp. range [°C] [Min] 0 °C
Compensated temp. range [°F] [Max] 212 °F
Compensated temp. range [°F] [Min] 32 °F
Electrical conn. comments Integrated
Electrical conn. Male/Female Male
Electrical connection AMP Econoseal, J-series
Electrical connection size 3 pin
Enclosure rating IP IP67
Fault Monitoring Demand No
Flush diaphragm No
Identical product 064G4001
Intrinsically safe No
Medium temperature range [°C] [Max] 125 °C
Medium temperature range [°C] [Min] -20 °C
Medium temperature range [°F] [Max] 257 °F
Medium temperature range [°F] [Min] -4 °F
Non-linearity BFSL ±FS [%] 0.2 %
Overload pressure max. [bar] 1400 bar
Overload pressure max. [psi] 20305 psi
Packing format Multi pack
Pressure connection HEX [mm] 22 mm
Pressure connection size 1/4
Pressure connection standard DIN 3852-E
Pressure connection type G
Pressure Male/Female Male
Pressure range [bar] [Max] 250 bar
Pressure range [bar] [Min] 0 bar
Pressure range [psi] [Max] 3625.94 psi
Pressure range [psi] [Min] 0 psi
Pressure unit reference Gauge (relative)
Product group Sensors
Product name Pressure transmitter
Pulse-snubber Yes
Quantity per packing format 24 pc
Ratiometric of Vsupply [%] [Max] 90 %
Ratiometric of Vsupply [%] [Min] 10 %
Reference temperature [°C] 25 °C
Reference temperature [°F] 77 °F
Response time max. [ms] 1 ms
Specification key MBS 8250-3416-A2GB04-1
Supply voltage [V] DC [Max] 5.5 V
Supply voltage [V] DC [Min] 4.5 V
TEB inside CTR ±FS [%] 1 %
Thermal shift HTR ±FS/10 K [%] 0.2 %
Thermal shift LTR ±FS/10 K [%] 0.2 %
Type MBS 8250
