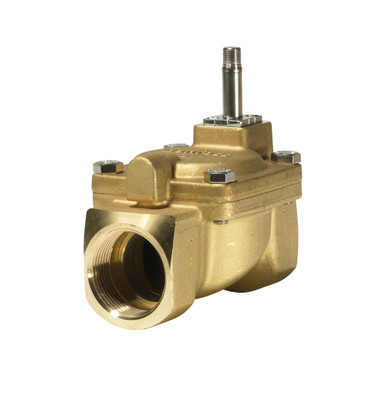

042U4084 Danfoss Solenoid valve, EV220A

042U4084 Danfoss Solenoid valve, EV220A

Original price was: $363.85.Current price is: $72.77.

SKU: 042U4084 Category: Tag:

Description

Product details

Gross weight 2.27 kg
Net weight 1.89 kg
EAN 5702423232550
Gross weight 2.27 kg
Net weight 1.89 kg
EAN 5702423232550



Actuator A
Actuator size 9 mm
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Body material Brass
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1 1/4
Connection standard ISO 228-1
Connection type G
Cv value [gal/min] 17.3 gal/min
Differential pressure [bar] [Max] 16 bar
Differential pressure [bar] [Min] 0.3 bar
Differential pressure [psi] [Max] 232 psi
Differential pressure [psi] [Min] 4.35 psi
Est. time to close, water [ms] 4000 ms
Est. time to open, water [ms] 2500 ms
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group I
Function NC
Kv value [m³/h] 15 m3/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 24 bar
Max. test pressure [psig] 348 psig
Max. Working Pressure [bar] 16 bar
Max. Working Pressure [psig] 232 psig
Media recommendations Compressed air
Oil
Media tolerance comments Neutral media
Medium temperature range [°C] [Max] 60 °C
Medium temperature range [°C] [Min] -10 °C
Medium temperature range [°F] [Max] 140 °F
Medium temperature range [°F] [Min] 14 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 32 mm
Orifice size fraction [in] 1 1/4 in
Packing format Single pack
Parts Program name EV220A
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product name Solenoid valve
Quantity per packing format 1 pc
Seal Material NBR
Serviceable Solenoid valve spare parts
Specification key EV220A 32B G 114N NC000
Type EV220A
Type designation EV220A 32
Valve operation SERVO-DIAPHRAGM
Actuator A
Actuator size 9 mm
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Body material Brass
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1 1/4
Connection standard ISO 228-1
Connection type G
Cv value [gal/min] 17.3 gal/min
Differential pressure [bar] [Max] 16 bar
Differential pressure [bar] [Min] 0.3 bar
Differential pressure [psi] [Max] 232 psi
Differential pressure [psi] [Min] 4.35 psi
Est. time to close, water [ms] 4000 ms
Est. time to open, water [ms] 2500 ms
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group I
Function NC
Kv value [m³/h] 15 m3/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 24 bar
Max. test pressure [psig] 348 psig
Max. Working Pressure [bar] 16 bar
Max. Working Pressure [psig] 232 psig
Media recommendations Compressed air
Oil
Media tolerance comments Neutral media
Medium temperature range [°C] [Max] 60 °C
Medium temperature range [°C] [Min] -10 °C
Medium temperature range [°F] [Max] 140 °F
Medium temperature range [°F] [Min] 14 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 32 mm
Orifice size fraction [in] 1 1/4 in
Packing format Single pack
Parts Program name EV220A
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product name Solenoid valve
Quantity per packing format 1 pc
Seal Material NBR
Serviceable Solenoid valve spare parts
Specification key EV220A 32B G 114N NC000
Type EV220A
Type designation EV220A 32
Valve operation SERVO-DIAPHRAGM

Product name: Solenoid valve, Type: EV220A, Function: NC, Connection size [in]: 1 1/4, Connection type: G, Connection Internal/External: Internal, Cv value [gal/min]: 17.300, Kv value [m³/h]: 15.000, Seal Material: NBR

Product details

Gross weight 2.27 kg
Net weight 1.89 kg
EAN 5702423232550
Gross weight 2.27 kg
Net weight 1.89 kg
EAN 5702423232550



Actuator A
Actuator size 9 mm
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Body material Brass
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1 1/4
Connection standard ISO 228-1
Connection type G
Cv value [gal/min] 17.3 gal/min
Differential pressure [bar] [Max] 16 bar
Differential pressure [bar] [Min] 0.3 bar
Differential pressure [psi] [Max] 232 psi
Differential pressure [psi] [Min] 4.35 psi
Est. time to close, water [ms] 4000 ms
Est. time to open, water [ms] 2500 ms
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group I
Function NC
Kv value [m³/h] 15 m3/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 24 bar
Max. test pressure [psig] 348 psig
Max. Working Pressure [bar] 16 bar
Max. Working Pressure [psig] 232 psig
Media recommendations Compressed air
Oil
Media tolerance comments Neutral media
Medium temperature range [°C] [Max] 60 °C
Medium temperature range [°C] [Min] -10 °C
Medium temperature range [°F] [Max] 140 °F
Medium temperature range [°F] [Min] 14 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 32 mm
Orifice size fraction [in] 1 1/4 in
Packing format Single pack
Parts Program name EV220A
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product name Solenoid valve
Quantity per packing format 1 pc
Seal Material NBR
Serviceable Solenoid valve spare parts
Specification key EV220A 32B G 114N NC000
Type EV220A
Type designation EV220A 32
Valve operation SERVO-DIAPHRAGM
Actuator A
Actuator size 9 mm
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Body material Brass
Connection Internal/External Internal
Connection material Brass
Connection size [in] 1 1/4
Connection standard ISO 228-1
Connection type G
Cv value [gal/min] 17.3 gal/min
Differential pressure [bar] [Max] 16 bar
Differential pressure [bar] [Min] 0.3 bar
Differential pressure [psi] [Max] 232 psi
Differential pressure [psi] [Min] 4.35 psi
Est. time to close, water [ms] 4000 ms
Est. time to open, water [ms] 2500 ms
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group I
Function NC
Kv value [m³/h] 15 m3/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 24 bar
Max. test pressure [psig] 348 psig
Max. Working Pressure [bar] 16 bar
Max. Working Pressure [psig] 232 psig
Media recommendations Compressed air
Oil
Media tolerance comments Neutral media
Medium temperature range [°C] [Max] 60 °C
Medium temperature range [°C] [Min] -10 °C
Medium temperature range [°F] [Max] 140 °F
Medium temperature range [°F] [Min] 14 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 32 mm
Orifice size fraction [in] 1 1/4 in
Packing format Single pack
Parts Program name EV220A
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product name Solenoid valve
Quantity per packing format 1 pc
Seal Material NBR
Serviceable Solenoid valve spare parts
Specification key EV220A 32B G 114N NC000
Type EV220A
Type designation EV220A 32
Valve operation SERVO-DIAPHRAGM
