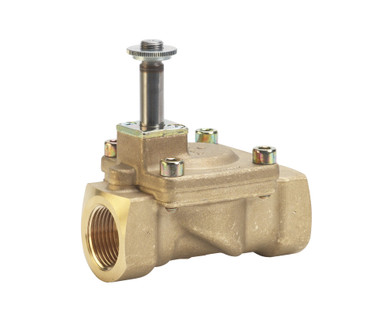

042U4033 Danfoss Solenoid valve, EV220A

042U4033 Danfoss Solenoid valve, EV220A

Original price was: $176.06.Current price is: $44.02.

SKU: 042U4033 Category: Tag:

Description

Product details

Gross weight 0.81 kg
Net weight 0.76 kg
EAN 5702423106646
Gross weight 0.81 kg
Net weight 0.76 kg
EAN 5702423106646



Actuator A
Actuator size 9 mm
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Body material Brass
Connection Internal/External Internal
Connection material Brass
Connection size [in] 3/4
Connection standard ISO 228-1
Connection type G
Cv value [gal/min] 8.1 gal/min
Differential pressure [bar] [Max] 10 bar
Differential pressure [bar] [Min] 0.2 bar
Differential pressure [psi] [Max] 145 psi
Differential pressure [psi] [Min] 2.9 psi
Est. time to close, water [ms] 500 ms
Est. time to open, water [ms] 200 ms
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group I
Function NC
Kv value [m³/h] 7 m3/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Compressed air
Oil
Sweet water
Media tolerance comments Water at max. 60°C/140 °F
Medium temperature range [°C] [Max] 100 °C
Medium temperature range [°C] [Min] 0 °C
Medium temperature range [°F] [Max] 212 °F
Medium temperature range [°F] [Min] 32 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 18 mm
Orifice size fraction [in] 3/4 in
Packing format Multi pack
Parts Program name EV220A
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product name Solenoid valve
Quantity per packing format 24 pc
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV220A 18B G 34F NC000
Type EV220A
Type designation EV220A 18
Valve operation SERVO-DIAPHRAGM
Actuator A
Actuator size 9 mm
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Body material Brass
Connection Internal/External Internal
Connection material Brass
Connection size [in] 3/4
Connection standard ISO 228-1
Connection type G
Cv value [gal/min] 8.1 gal/min
Differential pressure [bar] [Max] 10 bar
Differential pressure [bar] [Min] 0.2 bar
Differential pressure [psi] [Max] 145 psi
Differential pressure [psi] [Min] 2.9 psi
Est. time to close, water [ms] 500 ms
Est. time to open, water [ms] 200 ms
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group I
Function NC
Kv value [m³/h] 7 m3/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Compressed air
Oil
Sweet water
Media tolerance comments Water at max. 60°C/140 °F
Medium temperature range [°C] [Max] 100 °C
Medium temperature range [°C] [Min] 0 °C
Medium temperature range [°F] [Max] 212 °F
Medium temperature range [°F] [Min] 32 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 18 mm
Orifice size fraction [in] 3/4 in
Packing format Multi pack
Parts Program name EV220A
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product name Solenoid valve
Quantity per packing format 24 pc
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV220A 18B G 34F NC000
Type EV220A
Type designation EV220A 18
Valve operation SERVO-DIAPHRAGM

Product name: Solenoid valve, Type: EV220A, Function: NC, Connection size [in]: 3/4, Connection type: G, Connection Internal/External: Internal, Cv value [gal/min]: 8.100, Kv value [m³/h]: 7.000, Seal Material: FKM

Product details

Gross weight 0.81 kg
Net weight 0.76 kg
EAN 5702423106646
Gross weight 0.81 kg
Net weight 0.76 kg
EAN 5702423106646



Actuator A
Actuator size 9 mm
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Body material Brass
Connection Internal/External Internal
Connection material Brass
Connection size [in] 3/4
Connection standard ISO 228-1
Connection type G
Cv value [gal/min] 8.1 gal/min
Differential pressure [bar] [Max] 10 bar
Differential pressure [bar] [Min] 0.2 bar
Differential pressure [psi] [Max] 145 psi
Differential pressure [psi] [Min] 2.9 psi
Est. time to close, water [ms] 500 ms
Est. time to open, water [ms] 200 ms
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group I
Function NC
Kv value [m³/h] 7 m3/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Compressed air
Oil
Sweet water
Media tolerance comments Water at max. 60°C/140 °F
Medium temperature range [°C] [Max] 100 °C
Medium temperature range [°C] [Min] 0 °C
Medium temperature range [°F] [Max] 212 °F
Medium temperature range [°F] [Min] 32 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 18 mm
Orifice size fraction [in] 3/4 in
Packing format Multi pack
Parts Program name EV220A
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product name Solenoid valve
Quantity per packing format 24 pc
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV220A 18B G 34F NC000
Type EV220A
Type designation EV220A 18
Valve operation SERVO-DIAPHRAGM
Actuator A
Actuator size 9 mm
Actuator size [in] 0.35 in
Actuator system [mm] 9 mm
Ambient temperature max. [°C] 50 °C
Ambient temperature max. [°F] 122 °F
Body material Brass
Connection Internal/External Internal
Connection material Brass
Connection size [in] 3/4
Connection standard ISO 228-1
Connection type G
Cv value [gal/min] 8.1 gal/min
Differential pressure [bar] [Max] 10 bar
Differential pressure [bar] [Min] 0.2 bar
Differential pressure [psi] [Max] 145 psi
Differential pressure [psi] [Min] 2.9 psi
Est. time to close, water [ms] 500 ms
Est. time to open, water [ms] 200 ms
Flow direction Single-flow
Flow direction indicator Embossed 1-way arrow
Fluid Group I
Function NC
Kv value [m³/h] 7 m3/h
Max media viscosity [cSt] 50 cSt
Max. test pressure [bar] 15 bar
Max. test pressure [psig] 217.5 psig
Max. Working Pressure [bar] 10 bar
Max. Working Pressure [psig] 145 psig
Media recommendations Compressed air
Oil
Sweet water
Media tolerance comments Water at max. 60°C/140 °F
Medium temperature range [°C] [Max] 100 °C
Medium temperature range [°C] [Min] 0 °C
Medium temperature range [°F] [Max] 212 °F
Medium temperature range [°F] [Min] 32 °F
Number of ways 2/2
Operation Servo-operated (diaphragm)
Orifice size [mm] 18 mm
Orifice size fraction [in] 3/4 in
Packing format Multi pack
Parts Program name EV220A
Product accessories Solenoid valve accessories
Product group Solenoid valves
Product name Solenoid valve
Quantity per packing format 24 pc
Seal Material FKM
Serviceable Solenoid valve spare parts
Specification key EV220A 18B G 34F NC000
Type EV220A
Type designation EV220A 18
Valve operation SERVO-DIAPHRAGM
