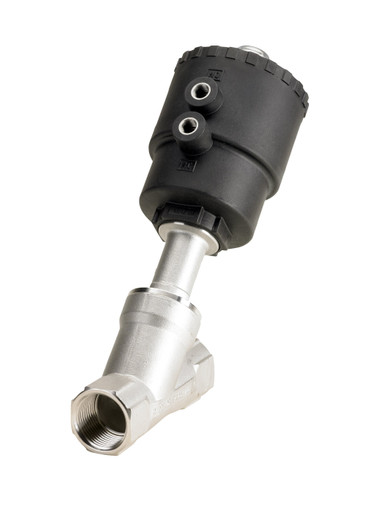

042N4481 Danfoss Angle-seat ext operated valve, AV210B

042N4481 Danfoss Angle-seat ext operated valve, AV210B

Original price was: $378.19.Current price is: $75.64.

SKU: 042N4481 Category: Tag:

Description

Product details

Gross weight 0.97 kg
Net weight 0.87 kg
EAN 5702423194605
Gross weight 0.97 kg
Net weight 0.87 kg
EAN 5702423194605



Ambient temperature range [°C] [Max] 60 °C
Ambient temperature range [°C] [Min] -30 °C
Ambient temperature range [°F] [Max] 140 °F
Ambient temperature range [°F] [Min] -22 °F
Body material Stainless steel
Closing Against flow
Connection Internal/External Internal
Connection size [in] 1/2
Connection type G
Control head diameter [mm] 50 mm
Control pressure range [bar] [Max] 10 bar
Control pressure range [bar] [Min] 3.5 bar
Control pressure range [psig] [Max] 145 psig
Control pressure range [psig] [Min] 50.8 psig
Cv value [gal/min] 6.5 gal/min
Differential pressure [bar] [Max] 16 bar
Differential pressure [bar] [Min] 0 bar
Function NO
Kv value [m³/h] 5.7 m3/h
Max. test pressure [bar] 37.5 bar
Max. test pressure [psig] 544 psig
Max. Working Pressure [bar] 25 bar
Max. Working Pressure [psig] 363 psig
Medium temperature range [°C] [Max] 180 °C
Medium temperature range [°C] [Min] -30 °C
Medium temperature range [°F] [Max] 356 °F
Medium temperature range [°F] [Min] -22 °F
Operation Piston (angle)
Orifice size [mm] 15 mm
Packing format Single pack
Product group Externally operated valves
Product name Angle-seat ext operated valve
Quantity per packing format 1 pc
Seal Material PTFE
Type AV210B
Ambient temperature range [°C] [Max] 60 °C
Ambient temperature range [°C] [Min] -30 °C
Ambient temperature range [°F] [Max] 140 °F
Ambient temperature range [°F] [Min] -22 °F
Body material Stainless steel
Closing Against flow
Connection Internal/External Internal
Connection size [in] 1/2
Connection type G
Control head diameter [mm] 50 mm
Control pressure range [bar] [Max] 10 bar
Control pressure range [bar] [Min] 3.5 bar
Control pressure range [psig] [Max] 145 psig
Control pressure range [psig] [Min] 50.8 psig
Cv value [gal/min] 6.5 gal/min
Differential pressure [bar] [Max] 16 bar
Differential pressure [bar] [Min] 0 bar
Function NO
Kv value [m³/h] 5.7 m3/h
Max. test pressure [bar] 37.5 bar
Max. test pressure [psig] 544 psig
Max. Working Pressure [bar] 25 bar
Max. Working Pressure [psig] 363 psig
Medium temperature range [°C] [Max] 180 °C
Medium temperature range [°C] [Min] -30 °C
Medium temperature range [°F] [Max] 356 °F
Medium temperature range [°F] [Min] -22 °F
Operation Piston (angle)
Orifice size [mm] 15 mm
Packing format Single pack
Product group Externally operated valves
Product name Angle-seat ext operated valve
Quantity per packing format 1 pc
Seal Material PTFE
Type AV210B

Product name: Angle-seat ext operated valve, Type: AV210B

Product details

Gross weight 0.97 kg
Net weight 0.87 kg
EAN 5702423194605
Gross weight 0.97 kg
Net weight 0.87 kg
EAN 5702423194605



Ambient temperature range [°C] [Max] 60 °C
Ambient temperature range [°C] [Min] -30 °C
Ambient temperature range [°F] [Max] 140 °F
Ambient temperature range [°F] [Min] -22 °F
Body material Stainless steel
Closing Against flow
Connection Internal/External Internal
Connection size [in] 1/2
Connection type G
Control head diameter [mm] 50 mm
Control pressure range [bar] [Max] 10 bar
Control pressure range [bar] [Min] 3.5 bar
Control pressure range [psig] [Max] 145 psig
Control pressure range [psig] [Min] 50.8 psig
Cv value [gal/min] 6.5 gal/min
Differential pressure [bar] [Max] 16 bar
Differential pressure [bar] [Min] 0 bar
Function NO
Kv value [m³/h] 5.7 m3/h
Max. test pressure [bar] 37.5 bar
Max. test pressure [psig] 544 psig
Max. Working Pressure [bar] 25 bar
Max. Working Pressure [psig] 363 psig
Medium temperature range [°C] [Max] 180 °C
Medium temperature range [°C] [Min] -30 °C
Medium temperature range [°F] [Max] 356 °F
Medium temperature range [°F] [Min] -22 °F
Operation Piston (angle)
Orifice size [mm] 15 mm
Packing format Single pack
Product group Externally operated valves
Product name Angle-seat ext operated valve
Quantity per packing format 1 pc
Seal Material PTFE
Type AV210B
Ambient temperature range [°C] [Max] 60 °C
Ambient temperature range [°C] [Min] -30 °C
Ambient temperature range [°F] [Max] 140 °F
Ambient temperature range [°F] [Min] -22 °F
Body material Stainless steel
Closing Against flow
Connection Internal/External Internal
Connection size [in] 1/2
Connection type G
Control head diameter [mm] 50 mm
Control pressure range [bar] [Max] 10 bar
Control pressure range [bar] [Min] 3.5 bar
Control pressure range [psig] [Max] 145 psig
Control pressure range [psig] [Min] 50.8 psig
Cv value [gal/min] 6.5 gal/min
Differential pressure [bar] [Max] 16 bar
Differential pressure [bar] [Min] 0 bar
Function NO
Kv value [m³/h] 5.7 m3/h
Max. test pressure [bar] 37.5 bar
Max. test pressure [psig] 544 psig
Max. Working Pressure [bar] 25 bar
Max. Working Pressure [psig] 363 psig
Medium temperature range [°C] [Max] 180 °C
Medium temperature range [°C] [Min] -30 °C
Medium temperature range [°F] [Max] 356 °F
Medium temperature range [°F] [Min] -22 °F
Operation Piston (angle)
Orifice size [mm] 15 mm
Packing format Single pack
Product group Externally operated valves
Product name Angle-seat ext operated valve
Quantity per packing format 1 pc
Seal Material PTFE
Type AV210B
