Description
Product details
| Gross weight |
4.29 kg |
| Net weight |
3.79 kg |
| Gross weight |
4.29 kg |
| Net weight |
3.79 kg |
| EAN |
5702423194544 |
| Ambient temperature range [°C] [Max] |
60 °C |
| Ambient temperature range [°C] [Min] |
-30 °C |
| Ambient temperature range [°F] [Max] |
140 °F |
| Ambient temperature range [°F] [Min] |
-22 °F |
| Body material |
Stainless steel |
| Closing |
Against flow |
| Connection Internal/External |
Internal |
| Connection size [in] |
1 1/2 |
| Connection type |
G |
| Control head diameter [mm] |
90 mm |
| Control pressure range [bar] [Max] |
8 bar |
| Control pressure range [bar] [Min] |
4 bar |
| Control pressure range [psig] [Max] |
116 psig |
| Control pressure range [psig] [Min] |
58 psig |
| Cv value [gal/min] |
53.1 gal/min |
| Differential pressure [bar] [Max] |
11 bar |
| Differential pressure [bar] [Min] |
0 bar |
| Function |
NC |
| Kv value [m³/h] |
46 m3/h |
| Max. test pressure [bar] |
37.5 bar |
| Max. test pressure [psig] |
544 psig |
| Max. Working Pressure [bar] |
25 bar |
| Max. Working Pressure [psig] |
363 psig |
| Medium temperature range [°C] [Max] |
180 °C |
| Medium temperature range [°C] [Min] |
-30 °C |
| Medium temperature range [°F] [Max] |
356 °F |
| Medium temperature range [°F] [Min] |
-22 °F |
| Operation |
Piston (angle) |
| Orifice size [mm] |
40 mm |
| Packing format |
Multi pack |
| Product group |
Externally operated valves |
| Product name |
Angle-seat ext operated valve |
| Quantity per packing format |
4 pc |
| Seal Material |
PTFE |
| Type |
AV210D |
| Ambient temperature range [°C] [Max] |
60 °C |
| Ambient temperature range [°C] [Min] |
-30 °C |
| Ambient temperature range [°F] [Max] |
140 °F |
| Ambient temperature range [°F] [Min] |
-22 °F |
| Body material |
Stainless steel |
| Closing |
Against flow |
| Connection Internal/External |
Internal |
| Connection size [in] |
1 1/2 |
| Connection type |
G |
| Control head diameter [mm] |
90 mm |
| Control pressure range [bar] [Max] |
8 bar |
| Control pressure range [bar] [Min] |
4 bar |
| Control pressure range [psig] [Max] |
116 psig |
| Control pressure range [psig] [Min] |
58 psig |
| Cv value [gal/min] |
53.1 gal/min |
| Differential pressure [bar] [Max] |
11 bar |
| Differential pressure [bar] [Min] |
0 bar |
| Function |
NC |
| Kv value [m³/h] |
46 m3/h |
| Max. test pressure [bar] |
37.5 bar |
| Max. test pressure [psig] |
544 psig |
| Max. Working Pressure [bar] |
25 bar |
| Max. Working Pressure [psig] |
363 psig |
| Medium temperature range [°C] [Max] |
180 °C |
| Medium temperature range [°C] [Min] |
-30 °C |
| Medium temperature range [°F] [Max] |
356 °F |
| Medium temperature range [°F] [Min] |
-22 °F |
| Operation |
Piston (angle) |
| Orifice size [mm] |
40 mm |
| Packing format |
Multi pack |
| Product group |
Externally operated valves |
| Product name |
Angle-seat ext operated valve |
| Quantity per packing format |
4 pc |
| Seal Material |
PTFE |
| Type |
AV210D |

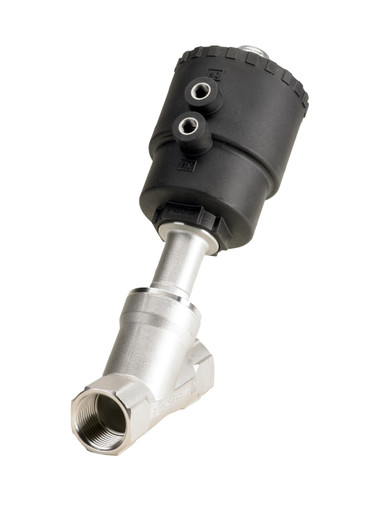

Product name: Angle-seat ext operated valve, Type: AV210D
